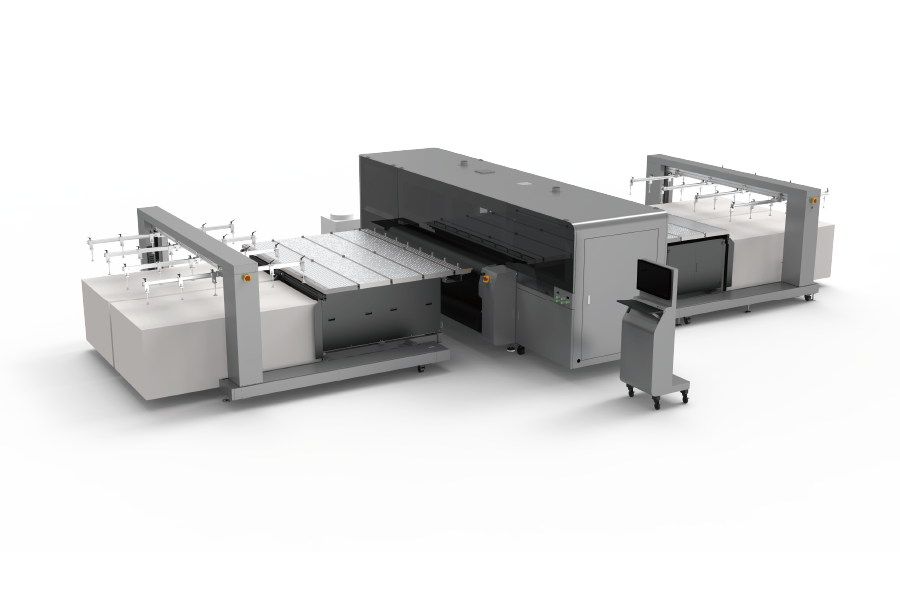

HandTop UV Hybrid is one of the most versatile printers on the market, offering unparalleled flexibility with the ability to print on both roll and rigid media.
Hi-speed and hi-precision UV hybrid printers available in numerous sizes, printhead rows and ink combinations, including simultaneous white ink mode and varnish mode options, offering enormous flexibility and capable of meeting any sized businesses requirements. Equipped with Ricoh GEN6 / Kyocera KJ4A grey-scale piezoelectric print heads, the printers can print at hi-speed and in hi-precision up to 1200*1200 DPI balancing the need for both speed and quality output.
Hybrid Wide Format Printers in 3 sizes:
1.6m wide – HT1600UV
2.5m wide – HT2500UV
3.2m wide – HT3200UV
with an option for both front and rear extension tables
Ultra Precision
Ricoh GEN6 / Kyocera KJ4A grey-scale piezoelectric print heads, multi-drop size, min 7pl – max 21pl, photo-grade quality, capable of printing 2pt characters clearly, a maximum DPI of 1200*1200, using precision harmonic reducer to drive the belt, ensuring motion stability of the media and the fixed linear raster used to guide the carriage.
The Retractable Alignment bar also allows for accurate consistent media placement.
User Friendly design
1. Full loop auto media thickness detection and auto height control system.
2. Auto skip function to identify and evade blank parts, with an optional pipeline printing mode.
3. Optional UV light irradiation power & Nozzle compensation function.
4. Auto pin registration devices & Anti-collision device on the carriage.
Stabile & Reliable
1. Durable parts for industrial production.
2. IGUS chain, AB servo motor, Megadyne synchronous belt.
3. Emergency stop switches makes it easy to stop operation from any corner of the printer.
4. Backup power supply.
Ink Saving
Multi-drop pixel technology significantly reduces the amount of the ink needed compared to the standard print mode on other machines.
Eco-friendly
Uses non-VOC environmental friendly UV curing ink.
Application
UV curing ink is eco-friendly and can used directly on a wide variety of material, it is anticipated that UV printers will replace both traditional outdoor advertising and interior photo printing equipment. Moreover it can be used widely across the interior decoration segment in areas such as wallpaper, public display boards, etc.
